Heating / Heat Pump

Q-Line

Swimming pool heating

3 capacities | For pools up to 50m3 | Operates down to -10°C

Full Inverter

Chauffe / Refroidit

Compatible traitement au sel

Ventilation gain d'espace

Warranty

2years

Heat pump

5years

Compressor

15years

Agains coil
corrosion

Store locator Let us guide you

Download the product sheet

Download the user manuals

Advantages

Why choose the Q-Line to heat up your swimming pool

The Poolex Q-Line serving a majority of swimming pool

The average volume of a new swimming pool has halved in 40 years. Today it is around 20 m³. The Q-Line pool heat pump was born of this observation. Poolex wanted this equipment to be easy to install and intuitive to use. The Poolex Q-Line is a concentrate of technology, ergonomics, design and performance.

The Full Inverter technology that equips the majority of Poolex heat pumps allows for 30 to 35% energy savings over a year compared to an ON/OFF heat pump. Mainly thanks to a compressor and a fan that function at variable speed.

Upward ventilation on the Q-Line saves a lot of space, making it easier to choose the installation area.

From a user standpoint, everything has been thought to make this heat pump an easy equipment to use. Thanks to its integrated Wifi module. the digital control panel can controlled from your smartphone.

LEDs at the front indicate with a colour code whether target temperature has been reached. Its design in a rounded square shape suits any style of swimming pool and its ABS casing has the necessary resistance for a long service life.

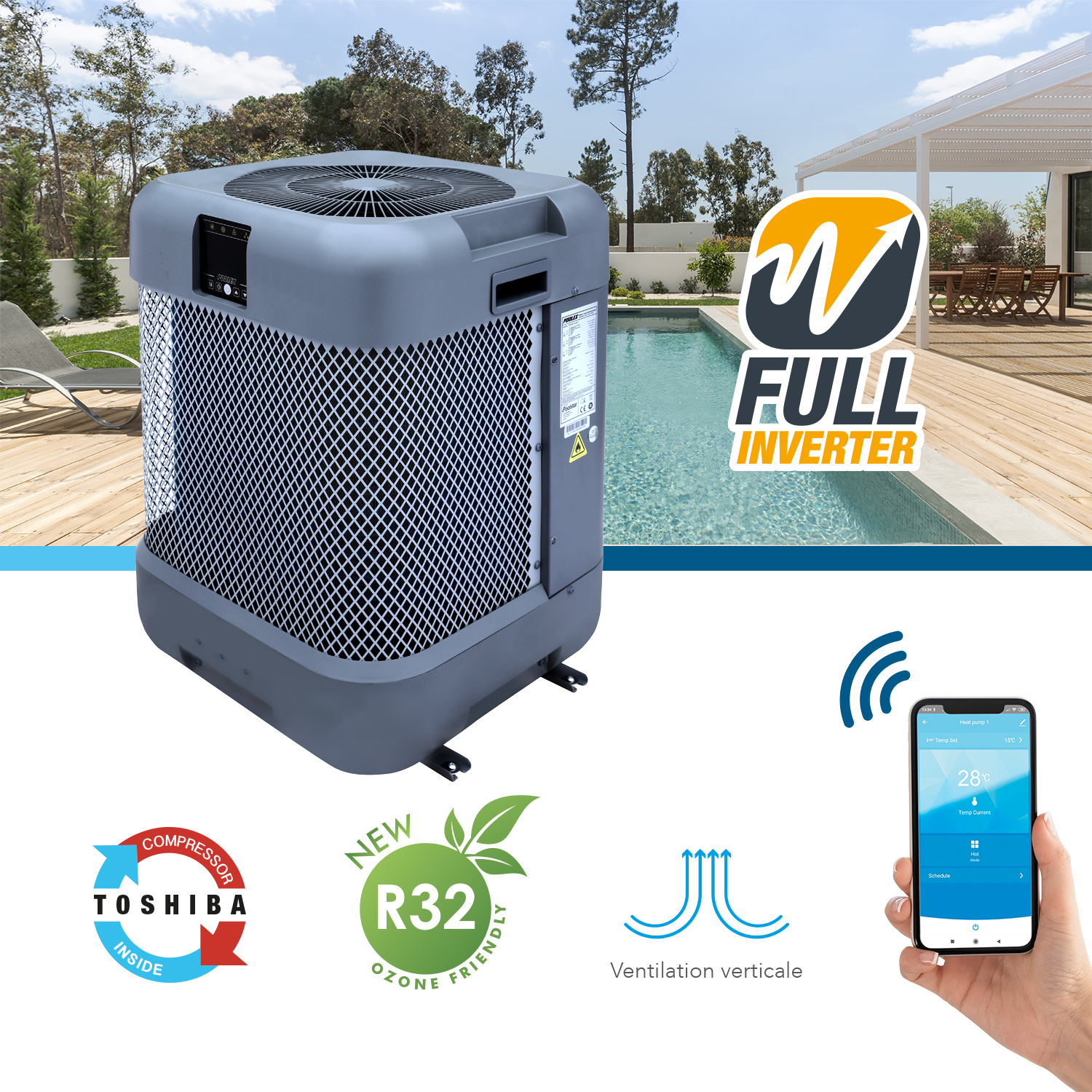

Full inverter technology for more energy savings

Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump.

The compressor starts up gradually. An automatic regulator boosts the heat pump's capacity for a rapid rise in temperature when the set temperature is far from the pool temperature. During the season, to maintain the set temperature, the heat pump operates at reduced power.

The Full Inverter heat pump therefore operates more stably. The compressor avoids sudden starts and stops. All this for energy savings of over 35% compared with an ON/OFF pool heat pump.

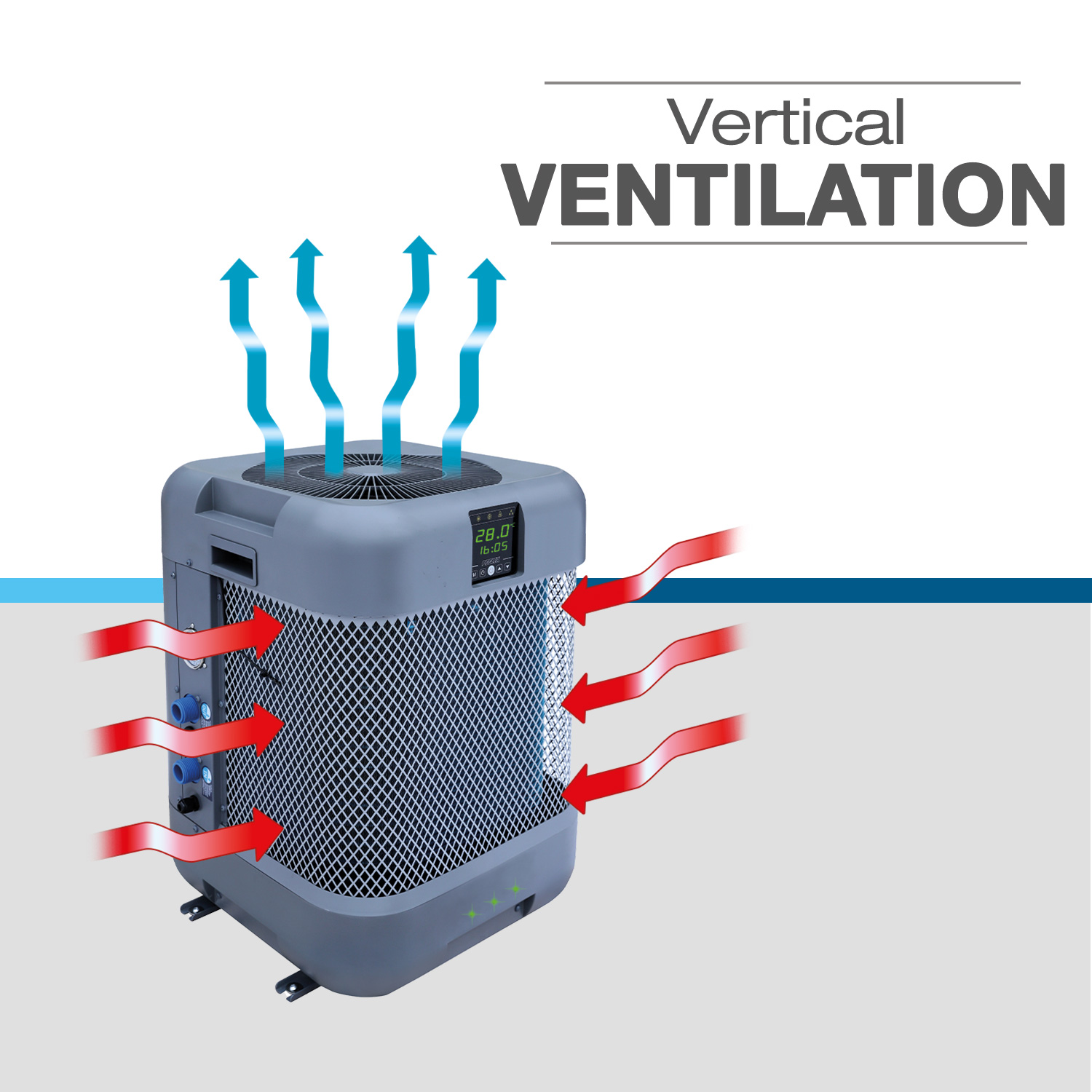

Upward ventilation

The upward ventilation of the Q-Line saves a lot of space by reducing the area where stale air is exhausted. With a vertical design, it fits in the most confined spaces.

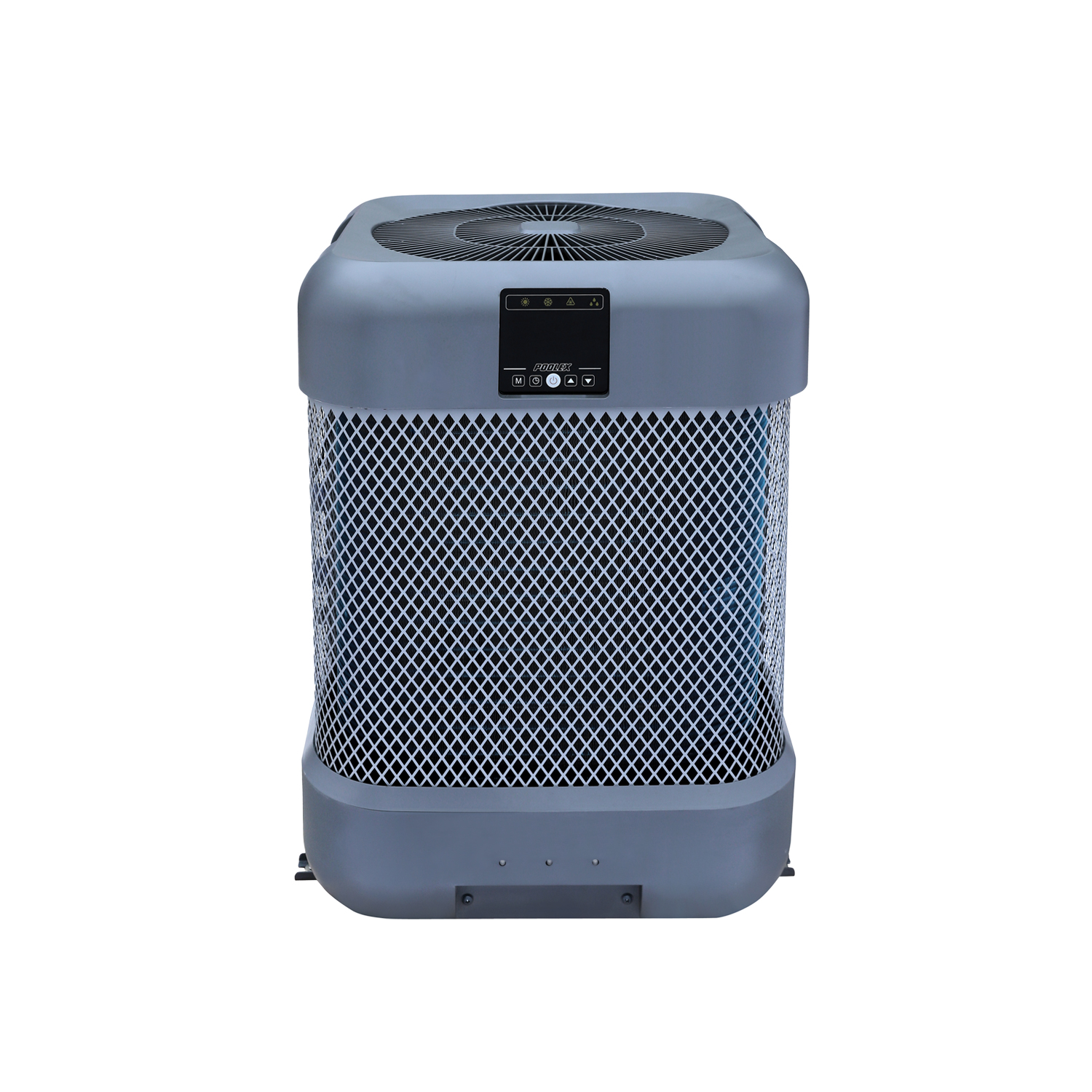

Anti-UV ABS casing

Popular in the hardware and decoration industry, ABS has demonstrated good resistance to exterior elements without any compromises to its decorative attributes. The Q-Line in the shape of a rounded cube matches all styles of pool and garden architecture.

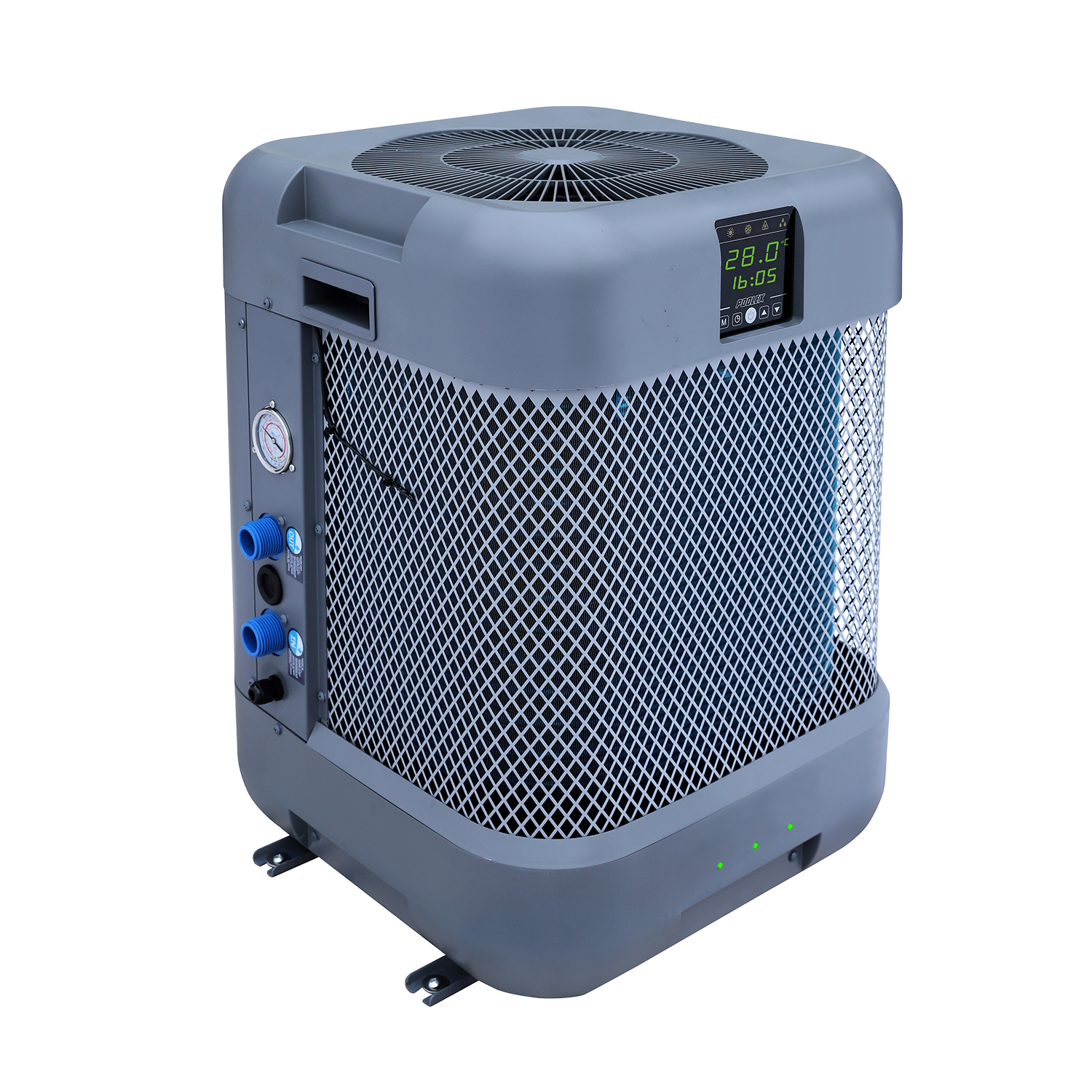

Indicative LED technology

The LEDs integrated into the front of the heat pump give it a colourful look, while providing a highly useful technical feature: instant display of the pump's operating status.

Green :temperature set point has been reached.
Blue:your pool is being heated.
Red:the heat pump is out of service.

Need some help?

Find your heat pump

Let us guide you

Model		Q-Line 5	Q-Line 7	Q-Line 9
Pool volume (m³)		20-35m³	30-45m³	40-50m³
Condition: Air 26°C Water 26°C Hygro 80%	Capacity (kW)	5.50~1.12	7.01~1.35	9.01~1.82
	Power consumption (kW)	0.86~0.089	1.09~0.105	1.43~0.146
	COP	12.58~6.40	12.86~6.43	12.47~6.30
Condition: Air 15°C Water 26°C Hygro 80%	Capacity (kW)	4.15~0.85	5.01~1.02	7.01~1.37
	Power consumption (kW)	0.92~0.132	1.11~0.145	1.57~0.217
	COP	6.44~4.51	7.03~4.51	6.31~4.46
Power supply		Mono 220-240V/50Hz
Heating temperature range		15°C ~ 40°C
Cooling temperature range		8°C ~ 28°C
Operating range		-10°C ~ 43°C
Max. power (kW)		1.2	1.6	2
Flow (³/h)		1.8	2.2	3.2
Refrigerant		R32
Packaging dimensions (mm)		500x500x760

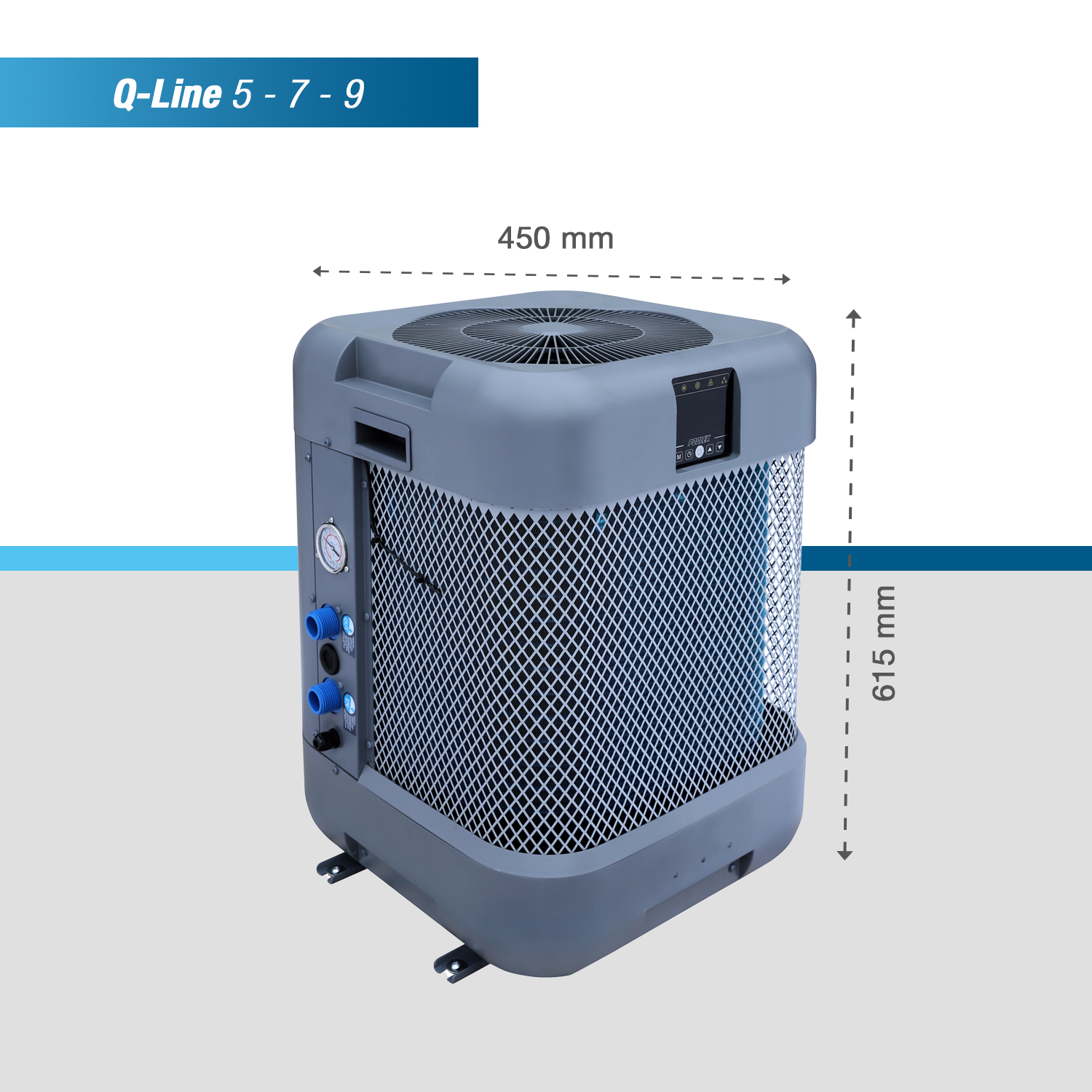

Dimensions (mm)		450x450x615
Net/gross weight (kg)		32 / 40	35 / 43	37 / 45
Noise at 1 m (db(A))		34~43	36~45	38~46
Noise at 10 m (db(A))		19~26	19~27	20~28
Compressor type		Rotary
Compressor brand		Toshiba
Hydraulic connection		32-38 mm
Heat exchanger		Twisted Tech^© Titanium
Operation		Heating / cooling
Load loss (mCE)		1.1
