Heating / Heat Pump

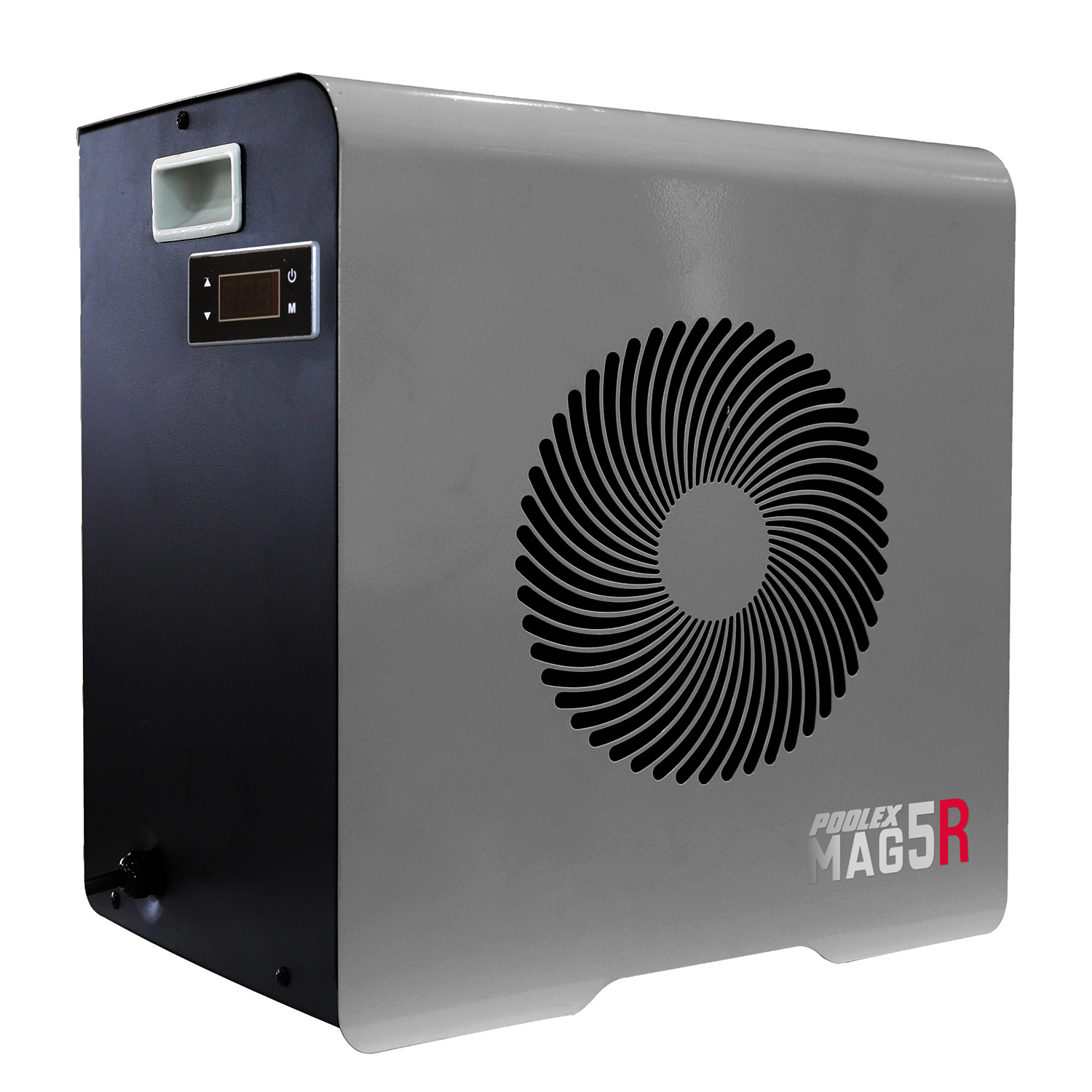

Mag R

Swimming Pool Heat Pump

2 power options available | Suitable for pools up to 35m³ | Operates from -10°C | Ultra compact

Plug & Play

Heating / Cooling

Silent

Temperature control via WiFi

Warranties

2years

Heat pump

Store locator Let us guide you

Download the product sheet

Product Highlights

Why choose the Mag R swimming pool heat pump?

The ultra-compact Mag R heat pump is also ultra-economical, being five times more efficient than an electric heater, allowing you to reduce your electricity consumption by 80%.

Specially designed to make your life easier, the Mag R heat pump is controlled with the touch of a finger through its WiFi connection and can be installed in just a few minutes thanks to plug and play.

Thanks to its reversible technology, it can cool the water but also use its defrost mode to optimize temperature rises. Your heat pump never stops, even when the nights are cold.

Designed as a premium heat pump, it inherits their performance in an ultra-compact form, and its weight allows it to be easily transported once the season is over.

Up to 80% reduction in your electricity consumption

Already prized by the home heating and air conditioning sectors, Full Inverter technology allows intelligent operation of your heat pump through precise adjustment of the fan and compressor.

The compressor starts gradually. An automatic regulator boosts the PAC's capacity for a rapid temperature rise when the set temperature is far from the pool's temperature. During the season, and to maintain the set temperature, the heat pump operates at reduced power.

The Full Inverter heat pump thus operates more stably. The compressor avoids unnecessary starts and stops. All this for an energy saving of more than 35% compared to an ON/OFF swimming pool heat pump.

Reversible hot / cold

The Mag R effectively competes with conventional heat pumps, offering a reversible functionality that both cools and warms your pool water. This versatility is particularly beneficial for small pools, where excessive heat due to sun exposure can lead to algae growth on the liner.

Integrated WiFi connection

Because pool equipment, however efficient, must be simple to use, Poolex equips its heat pumps with WiFi functionality. Find the information from your pump's control panel on your smartphone.

Need some help?

Find your heat pump

Let us guide you

Model		3 kW	4 kW	5 kW
Pool Volume (m³)		≤ 21	≤ 28	≤ 35
Conditions: Air 26°C Water 26°C Humidity 80%	Capacity (kW)	3000	4000	5000
	Power Consumed (kW)	545	727	862
	COP	5.5	5.5	5.8
*Condition: Air 15°C Water 26°C Humidity 70%**	Capacity (kW)	2100	2900	3700
	Power Consumed (kW)	500	690	822
	COP	4.2	4.2	4.5
Power Supply		Single Phase 220-240V / 50Hz
Max Power (W)		950	1200	1500
Max Current (A)		4.3	5.6	6.9
Operating Range		-5°C ~ 43°C
Heating Temperature Range		15°C / 40°C
Flow Rate (m³/h)		1.5	2	2.5
Refrigerant		R32
Packaging Dimensions (mm)		470x380x480	470x380x481	530x380x480
Dimensions (mm)		420x290x430	420x390x430	470x290x430
Net / Gross Weight (kg)		25/26	26/28	28/29
Noise at 1m (dB(A))		<44	<44	<45
Noise at 4m (dB(A))		<35	<35	<36
Noise at 10m (dB(A))		<29	<29	<29
Type of Compressor		Rotary
Compressor Brand		Toshiba
Heat Exchanger		Twisted Tech^© Titanium
Function		Heating / Cooling / Auto
Pressure Drop (mCE)		0.8	0.8	0.8
