Heating / Heat Pump

Nano Action

Above ground swimming pool heat pump

3 capacities | For pools up to 35m3 | Operates down to 8°C

Transportable

Plug & Play

Above ground pools

Warranty

2years

Store locator Let us guide you

Download the product sheet

Download the user manuals

Advantages

Why choose the Nano Action to heat up your small swimming pool

The heat pump special swimming pools up to 35m³.

Specifically designed to make life easier, the Nano Action comes equiped with 32/38 mm connectors for a quick connection to any classical filtration system.

Simply plug in your heat pump and let your swimming pool get warm.

Designed with the same specifications as a premium heat pump, it features the same efficiency in an ultra compact casing. With its light weight, easily transport it when the season is over.

Plug & Play

Thanks to its Plug & Play functionality, the Nano Action can be installed quickly by simply plugging it into a mains socket. Depending on the filtration system, it can be connected without a bypass.

The 5-metre cable is fitted with 10 mA differential protection to ensure safe use.

Ultra compact

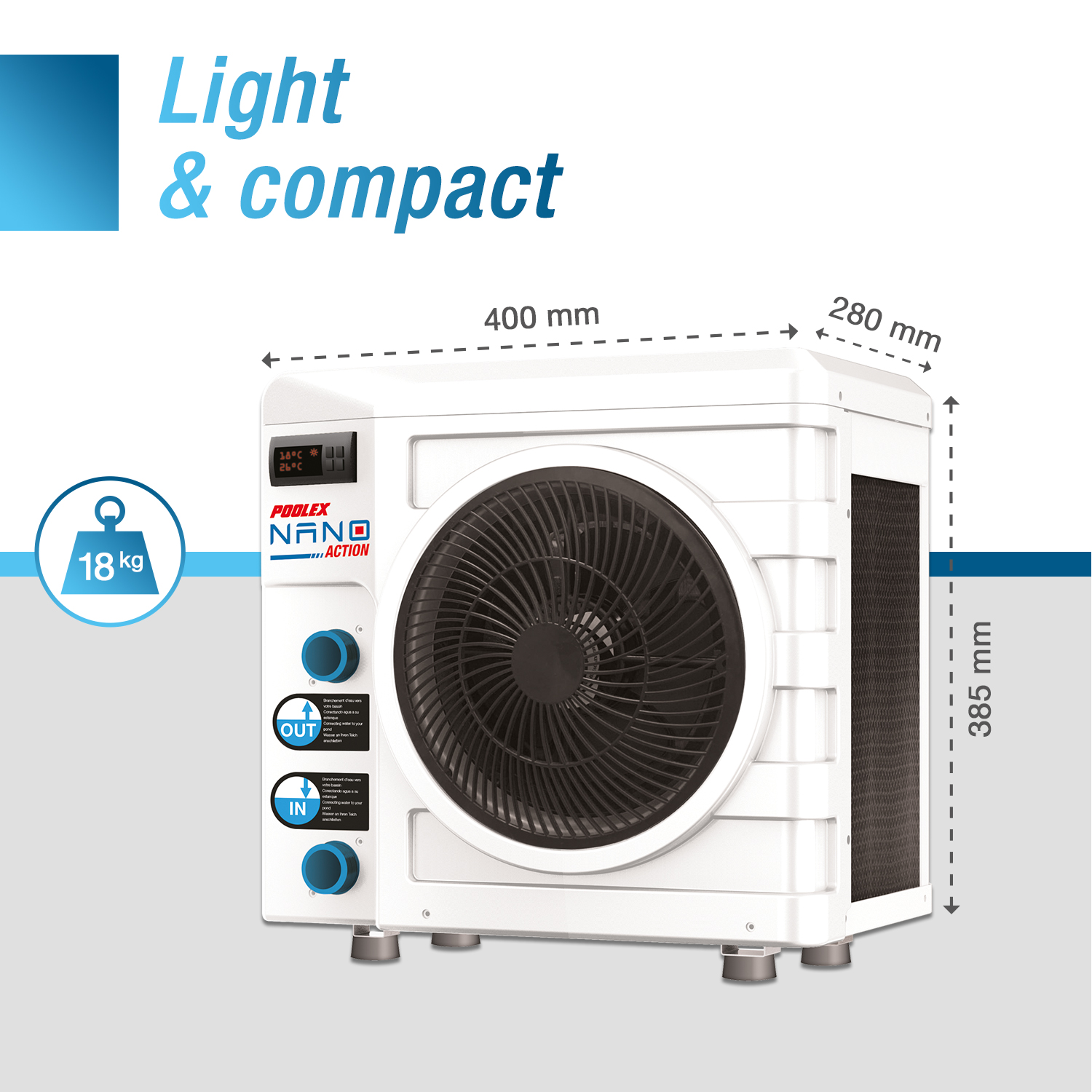

As a heat pump dedicated to small pools and above-ground pools, the Nano Action knows how to be discreet with its reduced dimensions of 40 cm wide by 39 cm high. It installs next to the swimming pool and blends in with the decor.

Connects to all above ground pools

Compact and equipped with functionalities designed for ease of use, the Nano Action heat pump fits perfectly with the trend of above ground pools which can be installed and heated in just a few hours.

Need some help?

Find your heat pump

Let us guide you

Model		Nano Action 3	Nano Action 4	Nano Action 5
Pool volume (m³)		From 10 to 21	From 15 to 28	From 20 to 35
Condition: Air 26°C Water 26°C Hygro 80%	Capacity (W)	3,010	4,200	5,010
	Power Consumption (W)	540	760	910
	COP	5.61	5.50	5.50
*Condition: Air 15°C Water 26°C Hygro 70%**	Capacity (W)	2,200	3,100	4,030
	Power Consumption (W)	490	690	900
	COP	4.51	4.50	4.50
Power supply		Mono 220-240V/50Hz
Heating temperature range		15°C ~ 40°C
Operating range		8°C ~ 43°C
Max. power (W)		930	1,200	1,500
Flow (³/h)		1.3	2	2.5
Refrigerant		R32
Packaging dimensions (mm)		460x370x415
Dimensions (mm)		400x280x385
Net/gross weight (kg)		18 / 20	24 / 28	26 / 30
Noise at 1 m (db(A))		<53	<55	<56
Noise at 10 m (db(A))		<32	<35	<36
Compressor type		Rotary
Compressor brand		Toshiba
Heat exchanger		Twisted Tech^© Titanium
Operation		Heating
Load loss (mCE)		0.8
